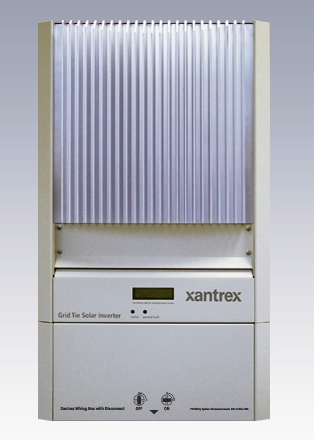

Xantrex GT Grid Tie Inverters

REAL PEOPLE - NOT "BUT IT" BUTTONS - 888-826-0939

NEW - Xantrex GT series

Same great features and benefits as all Xantrex GT Series Grid Tie Solar Inverters now in a 5000 watt size.

Xantrex GT Series Inverters make installation easier and more affordable

When Xantrex engineers set out to develop the GT Series Grid Tie Solar Inverter we listened to the experts - renewable energy dealers and installers. The result is high performance inverters that make utility interactive installations easier and more cost effective. Our high performance photovoltaic string inverter offers high efficiency, lower installed cost through time saving installation and included features, improved aesthetics and high reliability. The GT Series offers high quality products with the best price/performance ratio in the industry.  In addition, the modular design lets installers combine various output inverters to match any array size.

High Performance String Inverters

• High efficiency and outstanding energy harvest in a small, modular design
• Ease of installation due to the included mounting back plate and easy access wiring box
• Clean looking multi unit installations
• Included communication ports
• Included LCD display with back-light for 24 hour display viewing
• Convection cooled therefore not requiring a fan
• Light enough for one person to install, Max 51 lbs.
• Is compatible with other GT Series models to custom size the inverters to the array.
• Available in 2.5Kw, 3.0kW, 3.3kw, 3.3kW 208 volt and now 3.8kW
• >94% peak and average efficiency maximizes investment and energy harvest
• Fast MPPT tracking algorithm ensures maximum energy harvest from the array under any conditions
• Excellent thermal performance
• FCC Part B compliance means less potential interference with communication, radio, and consumer electronics

Easy and Less Costly to Install:

• Wide PV input MPPT tracking voltage range makes module selection and sizing extremely flexible
• Includes a lightweight and versatile mounting bracket that simplifies installation
• Modular design allows inverters to be mounted side-by-side, using each wiring box as a wiring raceway
• Easy access DC (photovoltaic) and AC (utility) terminal block simplifies wiring
• Integrated lockable AC/DC disconnect saves installation time and balance of system component cost
• Wiring box can be separated from the sealed inverter enclosure allowing DC/AC connections to remain intact in the unlikely event that the inverter needs to be serviced
• Rugged NEMA 3R inverter enclosure allows reliable outdoor and indoor installations

Full Feature Inverter Display and Communications:

• Liquid Crystal Display (LCD) provides instantaneous power, daily and lifetime energy production, photovoltaic array voltage and current, utility voltage and frequency, time online “selling” today, fault messages, and installer customizable screens
• LCD vibration sensor allows the tap of a finger to turn backlight on and display screen cycling
• Bright LED indicators provide system status at a glance
• Integrated RS232 and Xanbus RJ45 communication ports
• Free PC software for remote monitoring and system troubleshooting available online

Features:

• DC/AC Disconnect: Eliminates need for external DC (PV) disconnect. Complies with NEC 690
• Cooling: Convection (no fan required)
• Display: Backlit, two-line, 16-character Liquid Crystal Display provides instantaneous power, daily and lifetime energy production, PV array voltage and current, utility voltage and frequency, time online “selling” today, fault messages, and installer customizable screens
• Wiring Box: PV, Utility, Ground, and Communications connections. Wiring box can be separated from inverter

Warranty: 10 year Standard Warranty
