There is a lot of great information on this page, but prices and availability may be dated. Please CLICK HERE for our current selection on our new webpage: thesolarbiz.com.
RUSCO's complete line of Spindown and Sediment Trapper Filters make solid particle removal simple and economical.
 |

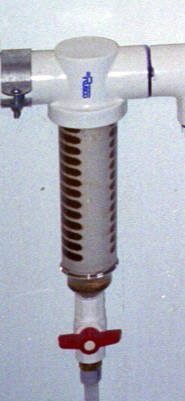

Spin Down, Sediment FiltersDesigned specifically to filter particulate matter from large volumes of water while keeping size (and cost) within manageable limits, this cartridge uses centrifugal force to spin particles out of the main stream and collects it at the bottom for easy discharge.
Use Stainless Steel filters or screens if you will encounter staining from iron etc. requiring periodic handling and cleaning of the filter. |
Specifications
Minimum Flow Rates:
1 GPM (3/4" & 1"); 10 GPM (1 1/2''); 18 GPM (2").
Dimensions: 5" x 8 1/2" (3/4" x 1"); 5 1/2" x 12" (1 1/2"); 6" x 15" (2").
Maximum
pressure: 150
psi (3/4" x 1"); 125 psi (1 1/2"); 100 psi (2").
Screen Mesh Sizes Poly Filters
| Mesh | Microns | Opening |
| 24 | 711 | .028" |
| 30 | 533 | .021" |
| 40 | 381 | .015" |
| 60 | 254 | .010" |
| 100 | 152 | .006" |
| 140 | 104 | .004" |
| 250 | 61 | .0024" |
| 500 | 30 | .0012" |
| 1000 | 15 | .0006" |
In general, us the coarsest screen deemed necessary to filter the material you want removed. This will result in longer runs between blow-downs.
Algae grows in the presence of light under the clear filter cover, if you have this problem order the SUN SHIELD in the parts section below.
When ordering specify filter and screen size.
Example: #1.5 - 100-F is a 11/2" filter with a 100 mesh screen size.
Filters with Stainless Steel Screens are also available see section below.
Use a Stainless Steel filter if you will encounter staining from iron etc. requiring periodic handling and cleaning of the filter.
Low Price Guarantee
|
Polyester Screened, Complete Spin Down Sediment Filters |
|
| Mfg. # | 1" SxS Inlet/Outlet Spin Down Sediment Filters |
| 1-5micron | 5 micron |
| 1-1000-F | 15 micron (1000 mesh) |
| 1-500-F | 30 micron (500 mesh) |
| 1-250-F | 61 micron (250 mesh) |
| 1-140-F | 104 micron (140 mesh) |
| 1-100-F | 152 micron (100 mesh) |
| 1-30-F | 533 micron (30 mesh) |
| Mfg. # | 1 1/2" S x S Inlet/Outlet Spin Down Sediment Filter |
| 1.5-1000-F | 15 micron (l000 mesh) |
| 1.5-500-F | 30micron (500 mesh) |
| 1.5-250-F | 61 micron (250 mesh) |
| 1.5-140-F | 104 micron (140 mesh) |
| 1.5-100-F | 152 micron (100 mesh) |
| 1.5-30-F | 533 micron (30 mesh) |
| Mfg. # | 2" S x S Inlet/Outlet Spin Down Sediment Filter |
| 2-1000-F | 15 micron (1000 mesh) |
| 2-500-F | 30 micron (500 mesh) |
| 2-250-F | 61 micron (250 mesh) |
| 2-140-F | 104 micron (140 mesh) |
| 2-100-F | 152 micron (100 mesh) |
| 2-30-F | 533 micron (30 mesh) |
Low Price Guarantee
|
Stainless Steel Screened, Complete Spin Down Sediment Filters |
|
| Mfg. # | 1" SxS Inlet/Outlet Spin Down Sediment Filters |
| 1-200-FSS | 76 micron (200 mesh) |
| 1-140-FSS | 104 micron (140 mesh) |
| 1-100-FSS | 152 micron (100 mesh) |
| 1-30-FSS | 533 micron (30 mesh) |
| Mfg. # | 1 1/2" S x S Inlet/Outlet Spin Down Sediment Filter |
| 1.5-200-FSS | 76 micron (200 mesh) |
| 1.5-140-FSS | 104 micron (140 mesh) |
| 1.5-100-FSS | 152 micron (100 mesh) |
| 1.5-30-FSS | 533 micron (30 mesh) |
| Mfg. # | 2" S x S Inlet/Outlet Spin Down Sediment Filter |
| 2-200-FSS | 76 micron (200 mesh) |
| 2-140-FSS | 104 micron (140 mesh) |
| 2-100-FSS | 152 micron (100 mesh) |
| 2-30-FSS | 533 micron (30 mesh) |
 |
Sediment Trappers - Sediment FiltersPolyester filter screens designed to filter particulate matter from large volumes of water while keeping size (and cost) within manageable limits, this cartridge uses centrifugal force to spin particles out of the main stream, collecting it at the bottom for easy discharge. The Sediment Trapper differs from the Spin Down Filter in capacity to store filtered particulate matter in the bottom half of the filter cover, requiring less frequent flushing of filtered material. Minimum Flow Rates: 1 GPM (3/4" x 1"); 10 GPM (1.5"); 18 GPM (2"). Dimensions: 3/4" Sc 1" (5" x 13 1/2"). Maximum pressure: 150 psi (3/4" & 1"); 125 psi (1 1/2"); 100 psi (2"). |
Filters with Stainless Steel Screens are also available see section below.
Use a Stainless Steel filter if you will encounter staining from iron etc. requiring periodic handling and cleaning of the filter.
Low Price Guarantee
|
Polyester Screened, Complete Sediment Trapper Filters |
|
| Mfg. # | 1" S x S Inlet / Outlet Poly Sediment Trapper Filter |
| 1-l000ST-F | 15 micron (1000 mesh) |
| 1-500ST-F | 30 micron (500 mesh) |
| 1-250ST-F | 61 micron (250 mesh) |
| 1-140ST-F | 104 micron (140 mesh) |
| 1-l00ST-F | 152 micron (100 mesh) |
| 1-30ST-F | 533 micron (30 mesh) |
| Mfg. # | 1 1/2" S x S Inlet/Outlet Sediment Trapper Filter |
| 1.5-l000ST-F | 15 micron (1000 mesh) |
| 1.5-500ST-F | 30 micron (500 mesh) |
| 1.5-250ST-F | 61 micron (250 mesh) |
| 1.5-140ST-F | 104 micron (140 mesh) |
| 1.5-l00ST-F | 152 micron (100 mesh) |
| 1.5-30ST-F | 533 micron (30 mesh) |
| Mfg. # | 2" S x S Inlet/Outlet Sediment Trapper Filters |
| 2-1000ST-F | 15 micron (1000 mesh) |
| 2-500ST-F | 30 micron (500 mesh) |
| 2-250ST-F | 61 micron (250 mesh) |
| 2-140ST-F | 104 micron (140 mesh) |
| 2-100ST-F | 152 micron (100 mesh) |
| 2-30ST-F | 533 micron (30 mesh) |
Low Price Guarantee |
|
|
Stainless Steel Screened, Complete Sediment Trapper Filters |
|
| Mfg. # | 1" S x S Inlet/Outlet Spin Down SS Sediment Trapper Filter |
| 1-200-STSS | 76 micron (200 mesh) |
| 1-140-STSS | 104 micron (140 mesh) |
| 1-100-STSS | 152 micron (100 mesh) |
| 1-30-STSS | 533 micron (30 mesh) |
| Mfg. # | 1 1/2" S x S Inlet/Outlet Spin Down SS Sediment Trapper Filter |
| 1.5-200-STSS | 76 micron (200 mesh) |
| 1.5-140-STSS | 104 micron (140 mesh) |
| 1.5-100-STSS | 152 micron (100 mesh) |
| 1.5-30-STSS | 533 micron (30 mesh) |
| Mfg. # | 2" S x S Inlet/Outlet Spin Down SS Sediment Trapper Filter |
| 2-200-STSS | 76 micron (200 mesh) |
| 2-140-STSS | 104 micron (140 mesh) |
| 2-100-STSS | 152 micron (100 mesh) |
| 2-30-STSS | 533 micron (30 mesh) |
|
|
|
Filter Parts List |
|
| Mfg. # | Filter Covers (Spin Down & Sediment Trapper) |
| 1CVR | 3/4" or 1" |
| 1.5CVR | 1 1/2" |
| 2CVR | 2" |
| Mfg. # | Filter Bodies (fits both Spin Down and Sediment Trapper) |
| 1FB | 1" S x S |
| 1.5FB | 1-1/2" S x S |
| 2FB | 2" S x S |
| Mfg. # | "O" Ring Kits (fits both Spin Down and Sediment Trapper) |
| K1 | 3/4" or 1" Kit |
| K1.5 | 1-1/2" Kit |
| K2 | 2" Kit |
| Mfg. # | Universal Flush Valves (fits all sizes of the filter covers) |
| 1/2FV | Flush Valve (1/2" PVC ball valve) |
| .5FVCPVC | CPVC Hot Water Flush Valve for Hi Temp Filters |
| Mfg. # | Sun Shields (Inhibits Algae Growth Inside Cover) |
| SS1 | 3/4" and 1" |
| SS1.5 | 1-1/2" |
| SS2 | 2" |
Use a Stainless Steel screen if you will encounter staining from iron etc. requiring periodic handling and cleaning of the filter.
Polyester and Stainless Steel replacement screens are interchangeable in the same filter cover sizes.
Low Price Guarantee
|
Spin Down Polyester Replacement Screens |
|
| Mfg. # | Description: 3/4" or 1" Spin Down Filter Screens |
| FS-1-5mic | 5 micron |
| FS1-1000 | 15 micron |
| FS1-500 | 30 micron |
| FS1-250 | 61 micron |
| FS1-140 | 104 micron |
| FS1-100 | 152 micron |
| FS1-30 | 533 micron |
| Mfg. # | 1 1/2" Spin Down Filter Screens |
| FS1.5-1000 | 15 micron |
| FS1.5-500 | 30 micron |
| FS1.5-250 | 61 micron |
| FS1.5-140 | 104 micron |
| FS1.5-100 | 152 micron |
| FS1.5-30 | 533 micron |
| Mfg. # | 2" Spin Down Filter Screens |
| FS2-1000 | 15 micron |
| FS2-500 | 30 micron |
| FS2-250 | 61 micron |
| FS2-140 | 104 micron |
| FS2-100 | 152 micron |
| FS2-30 | 533 micron |
|
|
| Sediment Trapper Polyester Replacement Screens | |
| Mfg. # | 3/4" or 1" Sediment Trapper Filter Screens |
| FS1-l000ST | 15 micron |
| FS1-500ST | 30 micron |
| FS1-250ST | 61 micron |
| FS1-140ST | 104 micron |
| FS1-l00ST | 152 micron |
| FS1-30ST | 533 micron |
| Mfg. # | 1 1/2" Sediment Trapper Filter Screens |
| FS1.5-1000ST | 15 micron |
| FS1.5-500ST | 30 micron |
| FS1.5-250ST | 61 micron |
| FS1.5-140ST | 104 micron |
| FS1.5-100ST | 152 micron |
| FS1.5-30ST | 533 micron |
| Mfg. # | 2" Sediment Trapper Filter Screens |
| FS2-1000ST | 15 micron |
| FS2-500ST | 30 micron |
| FS2-250ST | 61 micron |
| FS2-140ST | 104 micron |
| FS2-100ST | 152 micron |
| FS2-30ST | 533 micron |
Polyester and Stainless Steel replacement screens are interchangeable in the same filter cover sizes.
Use a Stainless Steel screen if you will encounter staining from iron etc. which requires periodic handling and cleaning of the filter.
|
Spin Down Stainless Steel Replacement Screens |
|
| Mfg. # | Description: 3/4" & 1" Spin Down Stainless Filter Screens |
| FS1-200SS | 76 micron |
| FS1-140SS | 104 micron |
| FS1-100SS | 152 micron |
| FS1-30SS | 533 micron |
| Mfg. # | 1 1/2" Spin Down Stainless Filter Screens |
| FS1.5-200SS | 76 micron |
| FS1.5-140SS | 104 micron |
| FS1.5-100SS | 152 micron |
| FS1.5-30SS | 533 micron |
| Mfg. # | 2" Spin Down Stainless Filter Screens |
| FS2-200SS | 76 micron |
| FS2-140SS | 104 micron |
| FS2-100SS | 152 micron |
| FS2-30SS | 533 micron |
| Mfg. # | Perforated Stainless Steel Screens |
| FS1-033SS | 1" Perforated Filter SS ST Screen |
| FS1.5-033SS | 1.5" Perforated Filter SS ST Screen |
| FS1.5-063SS | 1.5" Perforated Filter SS ST Screen |
| FS1.5-156SS | 1.5" Perforated Filter SS ST Screen |
| FS2-033SS | 2" Perforated Filter SS ST Screen |
| FS2-063SS | 2" Perforated Filter SS ST Screen |
| FS2-156SS | 2" Perforated Filter SS ST Screen |
|
|
| Sediment Trapper Stainless Steel Replacement Screens | |
| Mfg. # | 3/4" or 1" Sediment Trapper SS Filter Screens |
| FS1-200STSS | 76 micron |
| FS1-140STSS | 104 micron |
| FS1-l00STSS | 152 micron |
| FS1-30STSS | 533 micron |
| Mfg. # | 1 1/2" Sediment Trapper SS Filter Screens |
| FS1.5-200STSS | 76 micron |
| FS1.5-140STSS | 104 micron |
| FS1.5-100STSS | 152 micron |
| FS1.5-30STSS | 533 micron |
| Mfg. # | 2" Sediment Trapper SS Filter Screens |
| FS2-200STSS | 76 micron |
| FS2-140STSS | 104 micron |
| FS2-100STSS | 152 micron |
| FS2-30STSS | 533 micron |
| Mfg. # | Perforated Stainless Steel Sediment Trapper Screens |
| FS1-033STSS | 1" Perforated Filter SS ST Screen |
| FS1.5-033STSS | 1.5" Perforated Filter SS ST Screen |
| FS2-033STSS | 2" Perforated Filter SS ST Screen |
RUSCO HOT WATER FILTERS
A NEW Filter for use in Hydronic Heating Systems, Industrial heat exchangers, Cooling Tower Make up and Evaporator Water, Domestic or Commercial Hot Water Heaters, Machine Coolant, Cutting Fluids, Spas and Jacuzzis. Features centrifuge spin down type sediment separation. The optional CPVC flush valve allows quick one step purge cleaning.
 |
For high temperature operation up to 200°F (93°C) at 40 PSI, 150PSI maximum at 73°F. | ||||||||||||||||||||||||||||||||||||||||||||||||
|
The clear cover shows sediment collected on the filter screen element. | ||||||||||||||||||||||||||||||||||||||||||||||||
|
The high flow rates allow flow rates up to 25 GPM. | ||||||||||||||||||||||||||||||||||||||||||||||||
|
The thermoplastic construction has a high chemical resistance. | ||||||||||||||||||||||||||||||||||||||||||||||||
|
The filter body is made of black glass filled polypropylene with 304 stainless steel reinforced 3/4" Female NPT inlet and outlet connections. | ||||||||||||||||||||||||||||||||||||||||||||||||
|
The filter cover is a chemical and heat resistant HP Polymer (Translucent yellow color) | ||||||||||||||||||||||||||||||||||||||||||||||||
|
The durable stainless steel filter screen is a glass filled polypropylene support structure with a 304 stainless steel woven wire screen.
Don't forget to Order the Optional CPVC Hot Water Flush Valve for your Filter, see below.
Don't forget to Order the Optional CPVC Hot Water Flush Valve for your Filter Hot Water Flush Valve
Click here to view description and price on our new website.
|
| Rusco Warranty & Disclaimer Rusco, Inc. warrants to the original purchaser, that its products will be free from original defects in material and workmanship. RUSCO, Inc. will repair or replace all parts without charge, found to be defective under normal use and service within the warranty period upon return of products at customer’s expense. The components of all RUSCO products are warranted for a period of 12 months from date of original sale. RUSCO’s liability is solely limited to the original cost of the part. RUSCO will not be responsible for incidental or consequential damages. No agent or representative has the authority to waive or alter this printed warranty.
|
